Eurotramp “Ultimate 4×4” Trampoline

The “Ultimate” for next-level trampolining
The Eurotramp “Ultimate 4×4” trampoline features an extremely sturdy frame. Its stability is much higher than that of the previous generation, offering long-lasting, consistent performance characteristics and a perfectly balanced rebound. The design has also been simplified. Using the “Easy Lock” system, the competition trampoline can be quickly set up by just one person. The new frame construction with laser-cut parts guarantees even more safety. Special ultimate springs ensure optimal dynamics and durability.

Product information:

• “Easy Lock” system for easy set-up
• New and robust frame made of high-performance steel
• Padding with extra-strong fastening system for more safety and durability
• Non-wearing joints (maintenance-free, connection will not go back on itself)
• Incl. “Ultimate” adaptation kit for attaching the safety platform
• Incl. spare parts and user manual
• Unloading requires at least 4 people to assist

Versions:

• With rolling stands
• With rolling stands with lift
• With “Safe & Comfort” rolling stands with lift

Three all-round frame padding options

• 32-mm frame padding, foldable: the traditional 32-mm-thick padding is used with many large trampolines in both training and competition. It’s ideal when constantly setting up and taking down again. The padding can remain on the frame and does not have to be removed.
• 50-mm frame padding, foldable: the new 50-mm-thick padding offers more protection than the 32-mm-thick padding. It’s ideal when constantly setting up and taking down again. The padding can remain on the frame and does not have to be removed.
• 50-mm frame padding, will not fold: ideal for performance centres, where the trampoline stays in place for a long period of time.

Dimensions when set up and weight

• Dimensions (L×W×H): 520×305×115 cm
• Weight: 260 kg

Dimensions when stored

• On rolling stands with lift (L×W×H): approx. 334×80×220 cm or 197 cm when lowered
• On rolling stands (L×W×H): approx. 321×80×220 cm

Boxed dimensions

• Trampoline: 308×28×192 cm
• Rolling stands (2 pieces): each approx. 80×28×130 cm (approx. 12.5 kg)
• Rolling stands (2 pieces): each approx. 80×21×130 cm (approx. 9.5 kg)

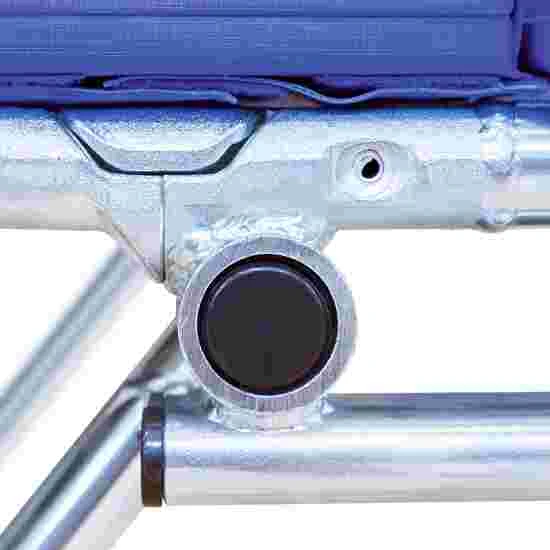

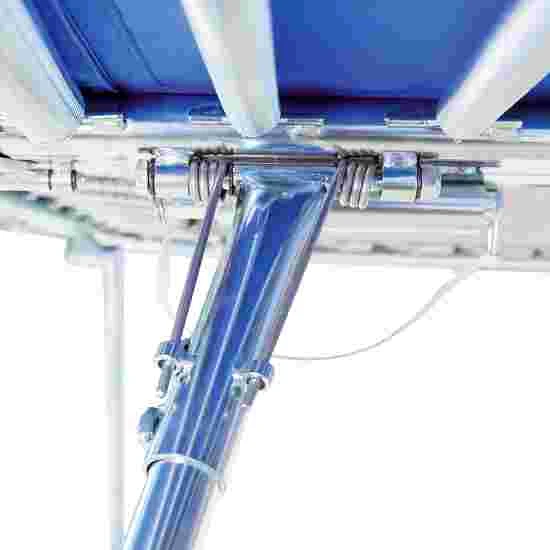

Sturdy frame with double supports
The frame of the Eurotramp “4×4” trampoline is made of galvanised special steel (L×W×H: 520×305×115 cm) and features a shock-absorbing and robust all-round frame padding. The tubular base feet are also made of electro-galvanised special steel. Additional struts provide reinforcement and increase the stability when the trampoline is used. Double supports further increase stability. Four rubber plates protect the floor during use.

Trampoline bed made of 4×4-mm nylon bands
The trampoline bed (L×W: 426×213 cm) consists of 4×4-mm-wide nylon bands, tensioned via 100 electro-galvanised steel springs (258 mm long, 39 mm in diameter). The maximum immersion depth is 115 cm. In order to use the competition trampoline in the best possible way, a ceiling height of at least 7 m is recommended.
